SETU VFX404

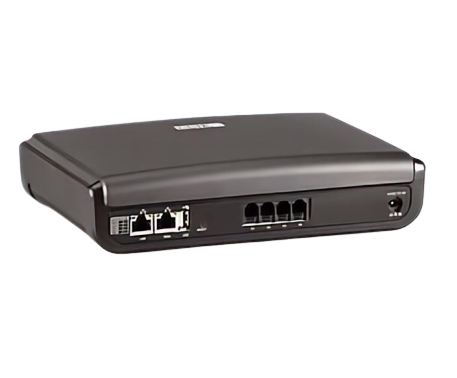

SETU VFX404 - VoIP-FXO Gateway with 4 VoIP and 4 FXS Ports

SETU VFX series is a range of multi-channel VoIP – FXO and FXS Gateways.
SETU VFX - the VoIP-FXS and FXO Gateways enable small and medium businesses to create a seamless office environment, integrate a traditional phone system into an IP network, and significantly reduce communication costs. These Gateways are ideally suitable for business and consumer VoIP services, including call centers and multi-location environments.
SETU VFX also enables large organizations to connect branch offices dispersed globally for Site-to-Site IP Telephony. This in turn reduces communication costs and helps them utilize existing telecom infrastructure.

Specification Table

SIP Accounts 9
Data Network 2 Port 10/100 Base-T (RJ45)
VoIP Protocol SIPv2, SDP, RTP (RFC 2833)
Network Protocol IPv4, TCP, UDP, PPPoE, DHCP Server & Client, SNTP, NAT, STUN, HTTP, DynDNS, Port Forwarding, and DMZ
Voice Codecs G.711 A/µ-Law, G.723.1, G.729AB, iLBC, GSM-FR
Line Echo Cancellation G.168 with 128ms Tail Length
Voice Processing Techniques
  • Dynamic Jitter Buffer (Adaptive)
  • Comfort Noise Generation (CNG)
  • Voice Activity Detection (VAD)
    		•
    Fax over IP (FoIP) T.38 and Pass-Through
    Quality of Service (QoS) Layer 3 DiffServ and ToS
    Security SRTP/TLS over SIP

    FXO

    Signaling Loop Start
    Connector RJ11
    Lifeline Support 1 (SETU VFX404 and SETU VFX808)
    Loop Limit 1200W
    DTMF Dialing & Reception ITU-T Q.23 and Q.24
    CLI Reception DTMF, FSK ITU-T V.23 and FSK Bellcore 202, TEL URI
    Call Maturity Delay and Polarity Reversal

    FXS

    Signaling Loop Start
    Connector RJ11
    Loop Limit 1800W (Max.) Excluding Telephone Set
    DTMF Dialing & Reception ITU-T Q.23 and Q.24
    CLI Reception DTMF, FSK ITU-T V.23 and FSK Bellcore 202
    Return Loss >18dB

    POWER SUPPLY (Input)

    SETU VFX 12V DC, 2A

    POWER SUPPLY (Input)

    SETU VFX 15W

    MECHANICAL (Dimension: W x H x D)

    SETU VFX 16.2 x 5.6 x 23.1 cm

    WEIGHT

    SETU VFX 0.8Kgs (1.76lbs)

    OPERATING TEMPERATURE

    SETU VFX -10°C to +50°C

    STORAGE TEMPERATURE

    SETU VFXTH -40°C to +85°C
