Home Product

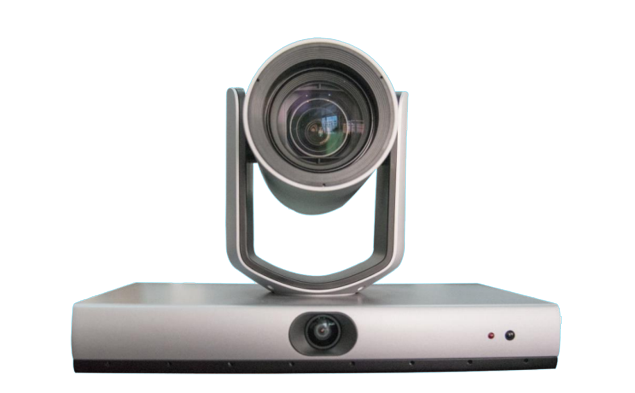

Speaker Track Standard

Key Features

1/2.8” CMOS, 2MP

12x optical zoom, up to 72.5° FOV

Simultaneously output 3G-SDI,HDMI, USB2.0, Ethernet, up to 1080P 60 resolution

Support H.264/H.265 video compression

Implemented with both audio positioning, body detection and recognition technologies, it can precisely frame the speakers. Support AEC.

Automatically switch between close-up image for speaker(s) and wide-angle image for all attendees.

Built-in image switch rules according to actual meeting scenarios






Product Specification

Speaker Track Standard camera helps to achieve intelligent meeting experience, implemented with both audio positioning and intelligent video analysis technologies. It can automatically switch between close-up image and full-view image to frame the speaker(s). It frees of camera operation during a meeting and enables meeting attendees to focus more on discussion.

Tracking Camera

Image Sensor 1/2.8”CMOS, 2MP
Signal Format(SDI) 1080P60, 1080P50, 1080P30, 1080P25, 1080I60, 1080I50, 720P60, 720P50
Focus f=3.9mm-46.8mm
Iris F1.6-F2.8
Optical Zoom 12x
Digital Zoom 12x
Field of View 72.5°-6.3°
Focus Auto, Manual, PTZ Push, One Push
Min. Illumination 0.5Lux (Colour)，0.1Lux (B/W)
Shutter Speed 1/25-1/10,000s
AGC Auto/Manual
White Balance Auto, Indoor, Outdoor, One Push Manual, Auto Track
AE Control Auto, Manual, Shutter Priority, Iris Priority
S/N ≥50dB
DNR 2D/3D
BLC Support

Full-View Camera

Image Sensor 1/2.5'' 4K CMOS, 8.57MP, 2.8mm
Lens Prime lens, 4X Digital Zoom
Field Of View 98°
Video adjustment Support EPT

PTZ

Pan Range 90°~+90°
Tilt Range -30°~+90°
Pan Speed 0.1°~120°/ s
Tilt Speed 0.1°~80°/s
Preset Number 64

Network

Max. Image Size 1920×1080 @60 fps
Video Compression H.265,H.264
Audio Compression AAC
Protocol HTTP,RTSP,RTMP,RTP,TCP,UDP,ONVIF
Dual Stream Support 1 Tracking, 1 Full-View, 1 Switching, three streams in total

Interface

Video Output 1×HDMI Interface,1×3G-SDI Interface， 2×LINE IN, including one channel with EC
Audio Input 2×LINE IN, including one channel
Audio output 1×LINE OUT
Network Interface 1×10M/100M
USB Interface 1×USB2.0, Support UVC/ UAC
Control Interface 1×RS-232

General

Control Protocol VISAC
Address 1~6
Power Supply DC12V
Power Consumption <20W
Working Temp 0°C ~ + 40°C
Storage Temp -20°C ~ +60°C
Dimension (L×W×H) 245 mm x 145mm x 165mm
Weight <2kg
