| Mobile Computing Platform | Intel® Core™
i5-10310U vPro™ Processor 6 MB cache, 1.7 GHz up to 4.4 GHz with Intel® Turbo Boost Technology |
|---|---|
| Operating System | Windows 10 Pro |
| RAM | 16GB (max. 32GB) DDR4 |
| Graphic Chip | Intel® UHD Graphics |
| Storage | 512GB OPAL NVMe SSD (1TB optional) |
| LCD | 10.1" sunlight-viewable WUXGA Active Matrix (TFT) IPSa colour LCD (up to 1000cd/m² brightness |
| Bluetooth™ | 5.1 + EDR Class 1 |
| Wireless LAN | Intel® WI-Fi6 AX201 |
| Touchscreen | 10 finger capacitive multi-touchscreen + digitizer with glove and rain modes |
| Mobile Broadband* | 4G LTE, supports 3G |
| GPS* | U-Blox NEO-M8N |
| Sound | Intel® High Definition Audio subsystem support, Stereo speaker |
| Camera | Front: 2 MP with IR / privacy shutter (Windows Hello compliant) Rear: 8mpixel with autofocus and LED flash |
| Configuration Port** | Serial, 2D Barcode Reader, 2nd USB 2.0, 2nd LAN, Thermal by FLIR |
| Rear Expansion Bay Area** | Smart Card Reader, HF-RFID (NFC) Reader |
| Interface | USB 3.1: x1 USB 3.1 type C PD: x1 LAN: x1 DC \In: x1 Port Replicator: x1 Dual Antenna Connector: x1 |
| Power | Power Management: Hot swap optional, Standby function, ACPI BIOS
Ac Adapter : Input: 100 V - 240 V AC, 50 Hz/ 60 Hz, Output: 15.6 V DC, 7.05 A Battery: Standard: Li-ion 11.4V, 4360mAh (50Whr) Extended (optional): Li-ion 10.8V, 6300mAh (68Whr) Battery Life: Standard: Approx. 12 hours (Mobile Mark™ 2014) Extended: Approx. 18.5 hours (Mobile Mark™ 2014) |
| Security | TPM (TCG V2.0 compliant) Password security (supervisor password, user password, hard disc lock) Integrated hardware security lock slot |
| Dimensions (W x H x D) | 279mm x 188mm x 23.5 mm / 11.0" x 7.4" x 0.93" |
| Weight | Approx. 1.19kg / 2.64lb |

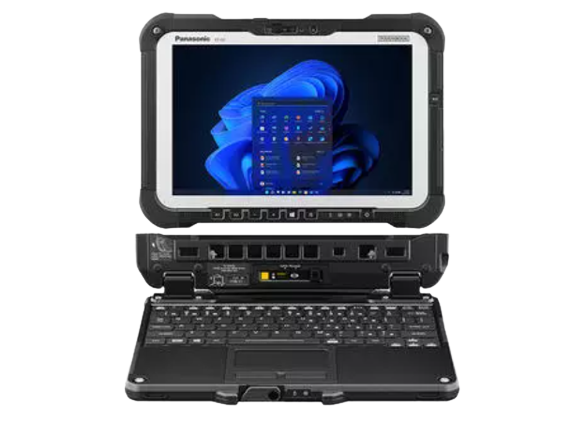

| Standard Configuration | FZ-G2mk1, 16GB RAM, 512GB SSD, standard battery pack, IP55 digitiser pen |
| Accessories | AC Adapter : CF-AA5713A2* Standard battery pack FZ-VZSU1TU Extended battery pack FZ-VZSU1UU Emissive backlit keyboard (with x1 USB type A and x1 USB type c) FZ-VEKG21L* Desktop port replicator FZ-VEBG21U Digitizer Stylus pen FZ-VNP026U Smart Card Reader FZ-VSCG211U HF-RFID (NFC) Reader |
| Testing Standards*** | Water Resistance IEC529 (JIS C0920) IPx5 Dust Resistance IEC529 (JIS C0920) IP6x Drop Resistance MIL-STD 810H, 180cm Operating Temperature MIL-STD 810H, -29 °C to 63 °C |
