SETU VFXTH0024

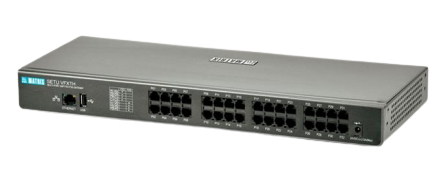

SETU VFXTH0024 - VoIP-FXO Gateway with 24 VoIP and 24 FXS Ports

SETU VFXTH series is a range of multi-channel VoIP - FXO and FXS Gateways.
It enables small and medium businesses to create a seamless office environment, integrates a traditional phone system into an IP network, and significantly reduces communication costs. These Gateways are ideally suitable for business and consumer VoIP services, including call centers and multi-location environments.
SETU VFXTH also enables large organizations to connect branch offices dispersed globally for site-to-site IP Telephony. This in turn reduces communication costs and helps them utilize existing telecom infrastructure.

Specification Table

SIP Accounts 32
Data Network 1 Port 10/100 Base-T (RJ45)
VoIP Protocol SIPv2, SDP, RTP (RFC 2833)
Network Protocol IPv4, TCP, UDP, PPPoE, DHCP Server & Client, SNTP, NAT, STUN, HTTP, DynDNS, Port Forwarding, and DMZ
Voice Processing Techniques
  • Dynamic Jitter Buffer (Adaptive)
  • Comfort Noise Generation (CNG)
  • Voice Activity Detection (VAD)
    		•
    Line Echo Cancellation G.168 with 128ms Tail Length
    Voice Codecs G.711 A/µ-Law, G.723.1, G.729AB, iLBC, GSM-FR
    Fax over IP (FoIP) T.38 and Pass-Through
    Quality of Service (QoS) Layer 3 DiffServ and ToS
    Security SRTP/TLS over SIP

    FXO

    Signaling Loop Start
    Connector RJ11
    Loop Limit 1200W
    DTMF Dialing & Reception ITU-T Q.23 and Q.24
    CLI Reception DTMF, FSK ITU-T V.23 and FSK Bellcore 202, TEL URI
    Return Loss >18dB
    Call Maturity Delay and Polarity Reversal

    FXS

    Signaling Loop Start
    Connector RJ11
    Loop Limit 1800W (Max.) Excluding Telephone Set
    DTMF Dialing & Reception ITU-T Q.23 and Q.24
    CLI Reception DTMF, FSK ITU-T V.23 and FSK Bellcore 202
    Return Loss >18dB

    POWER SUPPLY (Input)

    SETU VFXTH 24V DC, 2.5A

    POWER SUPPLY (Input)

    SETU VFXTH 60W

    MECHANICAL (Dimension: W x H x D)

    SETU VFXTH 48.3 x 5.1 x 17.2 cm

    WEIGHT

    SETU VFXTH 1.6Kgs (3.52lbs)

    OPERATING TEMPERATURE

    SETU VFXTH -10°C to +50°C

    STORAGE TEMPERATURE

    SETU VFXTH -40°C to +85°C
