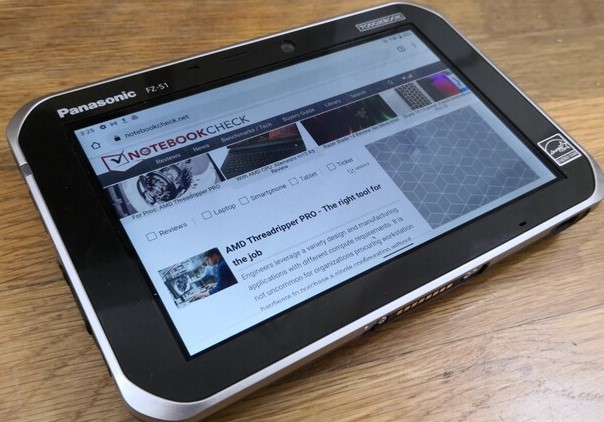

FZ-S1

Book Now

Products

Specification Table

Mobile Computing Platform Qualcomm® Snapdragon 660 Octa-Core 2,2 GHz
Operating System Android® 10
RAM 4GB RAM
Graphic Chip Qualcomm® Adreno 512 GPU
Storage 64GB eMMC 5.1
LCD 7.0" WXGA (1280 x 800) with AR, IPS colour LCD (up to 500cd/m² brightness)
Bluetooth™ Version 5.1 Class 1.5
Wireless LAN IEEE802.11 a/b/g/n/ac/d/h/i/r/k/v/w - 2.4GHz & 5GHz Supporttd>
Mobile Broadband 4G LTE, supports 3G - AirPrime® EM7455
GPS Integrated (GPS, GLONASS, Galileo, Beidou, QZSS) - CEP50 (±2 to 4m)
Sound Single front speaker 94dBA, internal Microphone with noise suppression
Security ARM® TrustZone®
NFC ISO/IEC 21481 (TypeA, TypeB, and ISO/IEC 15693)
Other Snsors Accerlation, Ambient light, Digital Compass, Gyro
Camera Front Camera 5 MP
Rear Camera 13 MP with autofocus and LED flash
Interfaces
  • USB x1 USB 3.0 Type-C
  • Micro SD/SDXC Memory Card x1
  • Headset x1
  • Port Replicator x1
  • DC In via USB-Type-C
Gadget Port*
  • Possible Gadgets: Barcorde Reader (P), Barcorde Reader (L), USB-Type A Port
  • AC Adapter Included Battery (Std) Up to 8 hours*** 3200 mAh Battery (Ext) Up to 14 hours **** 5580 mAh Power Management Warm swap
Dimensions (W x H x D) 193mm × 131mm × 22.9 mm without Gadgets
Weight
  • Standard battery- 434g /
  • Extended battery- 514g /
Testing Standards
  • Drop Resistance Minimum 150cm***
  • Dust Resistance IEC529 (JIS C0920) IP6x**
  • Water Resistance IEC529 (JIS C0920) IPx5**
  • Operating Temperature IEC529 (JIS C0920) IPx7** -20 °C to 50 °C ***
Optional Tested by an independent third party lab following MIL-STD-810H and IEC 60529,
Sections 13.4, 13.6.2, 14.2.5 and 14.3
Tested by Panasonic
Battery life measurement conditions: Wireless LAN, connection enabled;
continuous access to the server while browsing; swipe every 1 second; page change every 20 seconds.
